Bread slicer · conveyor feed
CBS 421
Specifications
What it draws and what it takes.
Machine
- Output1,000–1,200 loaves / hr
- Motor power1.2 kW / 1.5 HP
- Voltage415 V
- Phase3
- Line breaker10 A
- Number of poles3
- Weight340 kg
Bread dimensions
- Maximum bread width410 mm
- Minimum bread height65 mm
- Maximum bread height135 mm
- Slice thickness9–13 mm range
Slice thickness is fixed by the blade comb at manufacture. Specify at order — it cannot be changed afterwards without a new comb.
Built in
What comes as standard.

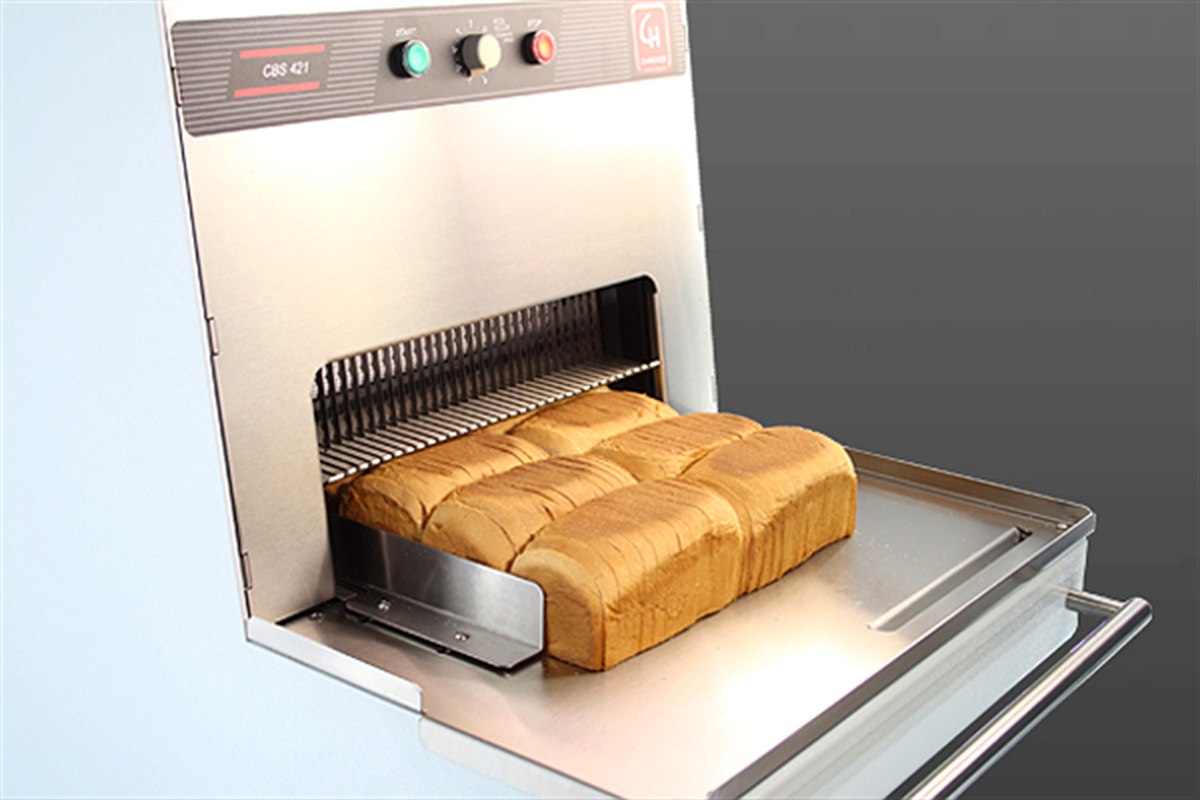

Continuous conveyor feed
Loaves are loaded onto a moving belt and fed through without the operator handling each one. One person can keep the machine running and bag at the same time.

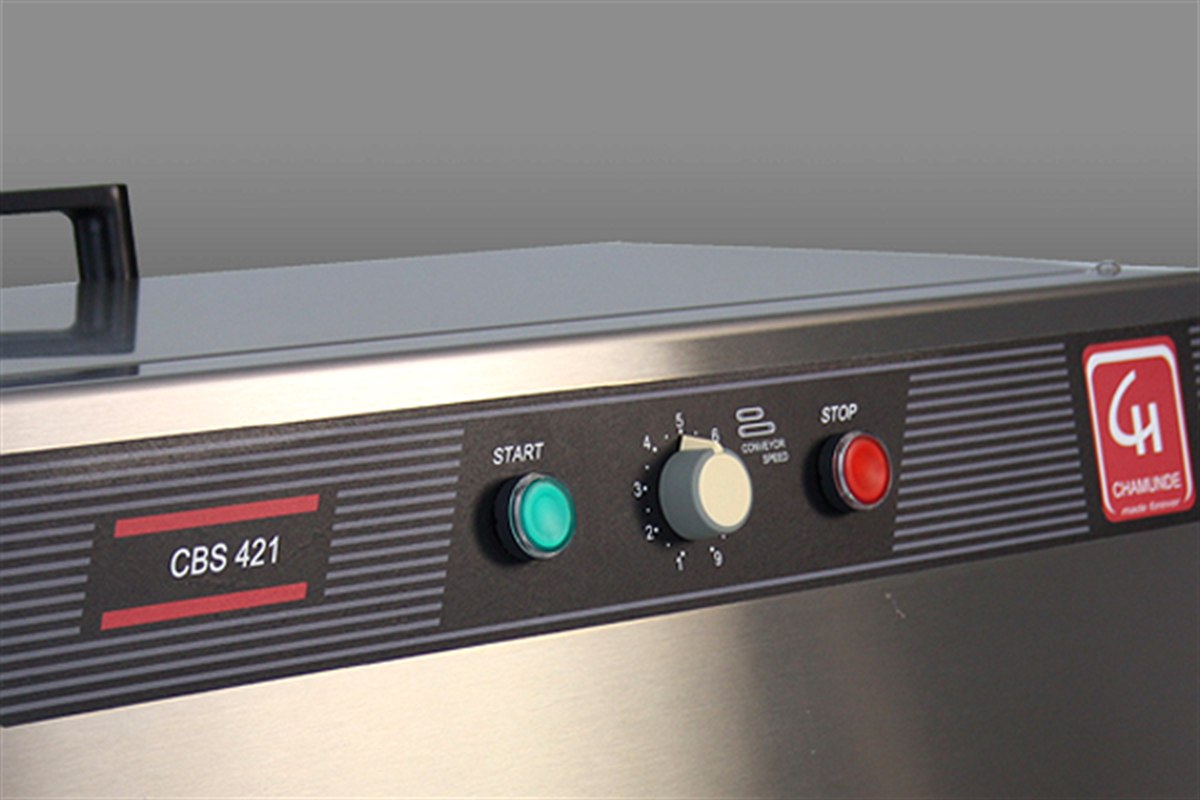

Dedicated control panel
Start, stop and emergency stop grouped on a front panel at working height, so nobody reaches across the feed to shut it down.

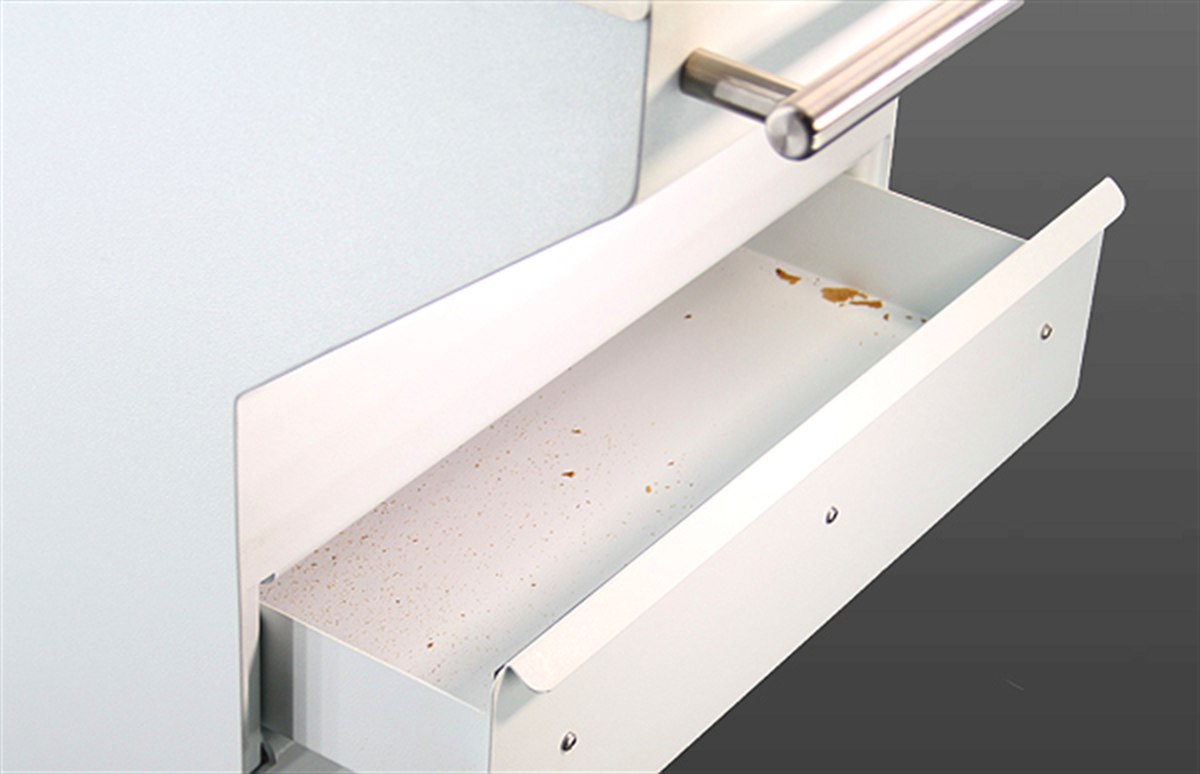

Crumb collecting drawer
Full-width drawer under the blade area. At this volume it matters — empty it between production runs.
Slice thickness
Fixed by the blade comb at manufacture, anywhere in the 9–13 mm range. Specify at order.
Larger model
The CBS 521 is available for wider loaves and higher volumes. Ask us for the current specification sheet.
Get a price on the CBS 421.
Send your loaf dimensions, daily volume and preferred slice thickness and we will quote the right conveyor model.
